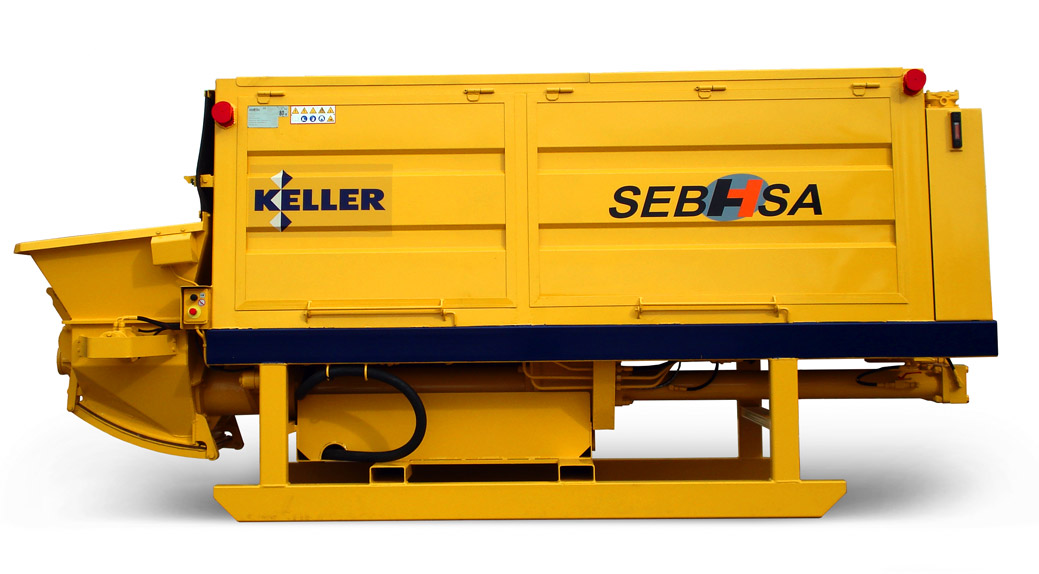

Compaction grouting mortar pumps(CG)
SEBHSA BE-2166.CG / BE-2139.CG
with diesel or electric engine
The tasked orientated and purpose designed SEBHSA compaction grouting pumps combine versatility, longevity and user friendliness with low maintenance and cost
Maximum concrete output: 160 m3/h
Maximum concrete pressure: 90 bar
LATIN TEX > Docebam in illis annis artem rhetoricam, et victoriosam loquacitatem victus cupiditate vendebam. malebam tamen, domine, tu scis, bonos habere discipulos, sicut appellantur boni, et eos sine dolo docebam dolos, non quibus contra caput innocentis, agerent, sed aliquando pro capite nocentis. et, deus, vidisti de longinquo lapsantem in lubrico, et in multo fumo scintillantem fidem meam, quam exhibebam in illo magisterio diligentibus vanitatem et quaerentibus mendacium, socius eorum. in illis annis unam habebam, non eo quod legitimum vocatur coniugio cognitam, sed quam indagaverat vagus ardor inops prudentiae, sed unam tamen, ei quoque servans tori fidem; in qua sane experirer exemplo meo, quid distaret inter coniugalis placiti modum, quod foederatum esset generandi gratia < LATIN TEX
Key features
- Available with a choice of diesel or electric engine, personalised fit-out and undercarriage - skids, crawlers, wheelbase or mounting frame to match individual customer requirements.
- Configured with fully adjustable pressure and output control, to provided the finely tuned low volume –high pressure outputs necessary for compaction grouting used for the pre-treatment of soils, works on liquefiable soils, karstic regions or when compensating for ground loss as a result of tunnelling or mining.
- Operated and controlled completely hydraulic-mechanical in an open hydraulic circuit to ensure reliability, minimal maintenance requirements and cost.
- Endowed with SEBHSA’s lifetime guarantee for the availability of spare parts and technical support.
Technical specifications
Max. nominal output
Maximum pressure
Mortar pressure
Pump cylinders
Hopper capacity
30 kW
160 m3 / h
3 m3 / h
0,2 - 60 bar
180 Ø x 1400 mm
450 l
Max. nominal output
Maximum pressure
Mortar pressure
Pump cylinders
Hopper capacity
30 kW
130 m3 / h
3 m3 / h
0,2 - 90 bar
180 Ø x 1400 mm
450 l
